The gearbox, the unsung hero of many machines, is responsible for transmitting power and changing its speed and direction. Keeping it healthy is vital for efficient operation and preventing costly downtime. Gearbox analysis helps diagnose potential problems before they snowball into major issues. This article explores various methods for analyzing your gearbox and keeping it running smoothly.

Visual Inspection: The First Line of Defense

A thorough visual inspection is a great starting point for gearbox analysis. Look for:

• Cracks, leaks, or signs of overheating on the gearbox housing. These could indicate structural issues or lubrication problems.
• Proper lubrication levels and the condition of the oil. Cloudy or discolored oil might signify contamination or degradation.
• External signs of wear on shafts or couplings. Excessive wear can be a symptom of misalignment or bearing problems.

Oil Analysis: Decoding the Lubricant

Gearbox oil analysis is a non-invasive technique that provides valuable insights. Here’s how it works:

• A sample of the oil is extracted and sent to a lab for analysis.
• Technicians examine the oil for the presence of:
  • Wear debris: Metallic particles indicate gear or bearing wear.
  • Oxidation: Breakdown of the oil due to heat or age.
  • Contamination: Dirt, water, or other foreign substances.

The presence and type of these elements can point towards specific gearbox issues.

 Vibration Analysis: Listening to Your Gearbox

Vibration analysis is a powerful tool for detecting gearbox problems. It involves using specialized equipment to measure the vibrations produced by the gearbox during operation. Different types of faults generate characteristic vibration frequencies. Here’s what a vibration analyst looks for:

• Increased overall vibration levels: This could indicate general wear or misalignment.
• Specific frequencies: Frequencies corresponding to gear meshing, bearing faults, or shaft imbalance can pinpoint the problem location.

By analyzing the vibration spectrum, technicians can identify problems at an early stage, allowing for corrective action before they cause serious damage.

Going Beyond the Basics:

For a more comprehensive analysis, especially for critical applications, additional methods can be employed:

• Temperature monitoring: Excessive temperatures can indicate bearing wear, lubrication issues, or overloading.
• Ultrasonic testing: This technique uses high-frequency sound waves to detect cracks or other internal defects in gearbox components.
• Magnetic particle inspection: This method helps identify surface cracks on gears and shafts.

Keeping Your Gearbox Healthy:

By incorporating these analysis techniques into your maintenance routine, you can:

• Identify and address problems early on. This prevents costly repairs and unplanned downtime.
• Optimize maintenance schedules. By understanding the condition of your gearbox, you can tailor maintenance activities to its specific needs.
• Extend the life of your gearbox. Proactive maintenance ensures your gearbox operates efficiently for a longer period.

Regular gearbox analysis is an investment that pays off in the long run. By keeping your gears in top shape, you can ensure smooth operation, avoid costly breakdowns, and maximize the lifespan of your machinery.

1. Start a New Project or Open an Existing One:

DigiVibMX9 allows creating new projects to store machine data. If you have data for an existing machine, you can open a project containing its information.

2. Machine Definition:

Within the project, there is a section for defining machine parameters. This involves specifying details like:

• • Machine Name (Unique identifier)
  • Machine Type (e.g., Pump, Motor)
  • Manufacturer
  • Model Number
  • Serial Number

3. Measurement Point Setup:

DigiVibMX9 allows defining measurement points on the machine. These points correspond to locations where vibration data is collected from sensors. You might need to specify:

• • Measurement Point ID (Unique identifier for each point)
  • Measurement Point Description (e.g., Top Bearing Housing, Gearbox)
  • Sensor Type (e.g., Accelerometer)
  • Sensor Location (e.g., Horizontal, Vertical)

 4. Data Acquisition:

Once the machine and measurement points are defined, you can use DigiVibMX9 to acquire vibration data from the sensors. This might involve setting up data collection parameters like:

• • Sampling Rate (Frequency at which data is collected)
  • Number of Channels (Number of sensors used)
  • Measurement Duration

5. Data Storage and Analysis:

The acquired vibration data is stored within the project file. DigiVibMX9 offer tools to analyze the data, such as:

• • Frequency spectrum analysis to identify dominant vibration frequencies
  • Time waveform analysis to visualize vibration patterns over time
  • Comparison with alarm or reference levels to detect anomalies

Here are some additional tips for creating a machine database in DigiVibMX9:

• Consult the DigiVibMX9 user manual or online documentation for specific instructions.
• If you’re unsure about any settings, refer to the Erbessd company’s recommendations for your machine type.
• Consider using a consistent naming convention for machines, measurement points, and data files for better organization.
• Back up your project files regularly to avoid data loss.

In the world of engineering and machinery, balance is key. Whether it’s a rotating shaft in an industrial plant or the propeller of an aircraft, imbalance can lead to inefficiency, excessive wear and tear, and even catastrophic failure. To ensure smooth operation and longevity of machinery, engineers rely on balancing techniques, with two primary methods being single plane and dual plane balancing.

What is Balancing?

Before diving into the intricacies of single plane and dual plane balancing, let’s understand the concept of balancing itself. In simple terms, balancing involves the adjustment of mass distribution within a rotating body to minimize vibration and maximize performance. This adjustment is crucial to prevent unnecessary stress on machinery components and to ensure their optimal functioning.

Single Plane Balancing:

Single plane balancing, as the name suggests, involves correcting imbalance along a single plane. This method is commonly used for machinery with relatively simple configurations, such as fans, impellers, and small motors. In single plane balancing, the goal is to identify the heavy spot on the rotating component and add or remove mass to counterbalance it.

The process typically involves mounting the rotating component on a balancing machine, which detects the imbalance and provides guidance on where and how much mass needs to be added or removed. This adjustment is usually achieved by adding balance weights or by drilling holes to remove excess material.

Single plane balancing is effective for many applications, but it may not address all sources of imbalance, especially in more complex machinery configurations.

Dual Plane Balancing:

Dual plane balancing, on the other hand, accounts for imbalance in two planes. This method is often necessary for machinery with more complex geometries, such as large turbines, engines, and multi-stage pumps. In these cases, imbalance can occur not only along the axis of rotation but also radially.

Dual plane balancing requires more sophisticated equipment and expertise compared to single plane balancing. It involves measuring and correcting imbalance in two directions, typically axial and radial, to achieve optimal balance.

Similar to single plane balancing, dual plane balancing also utilizes balancing machines to identify imbalance and determine the necessary adjustments. However, the process is more involved, as it requires careful consideration of both axial and radial components of imbalance.

Choosing The Right Balancing Method:

The choice between single plane and dual plane balancing depends on various factors, including the complexity of the machinery, the severity of imbalance, and the desired level of performance. While single plane balancing is simpler and sufficient for many applications, dual plane balancing offers a more comprehensive solution for complex machinery where imbalance occurs in multiple planes.

It’s essential to consult with experienced engineers and balancing experts to determine the most suitable balancing method for a specific application. By addressing imbalance effectively, machinery operators can improve efficiency, reduce maintenance costs, and extend the lifespan of critical components.

Conclusion

In the realm of machinery and engineering, balance is paramount. Single plane and dual plane balancing are two essential techniques used to address imbalance in rotating components. While single plane balancing is suitable for simpler configurations, dual plane balancing offers a more comprehensive solution for complex machinery.

Understanding the differences between these two methods and choosing the appropriate one for a given application is crucial for ensuring optimal performance and longevity of machinery. With proper balancing techniques in place, engineers can minimize vibration, reduce wear and tear, and enhance the reliability of critical systems.

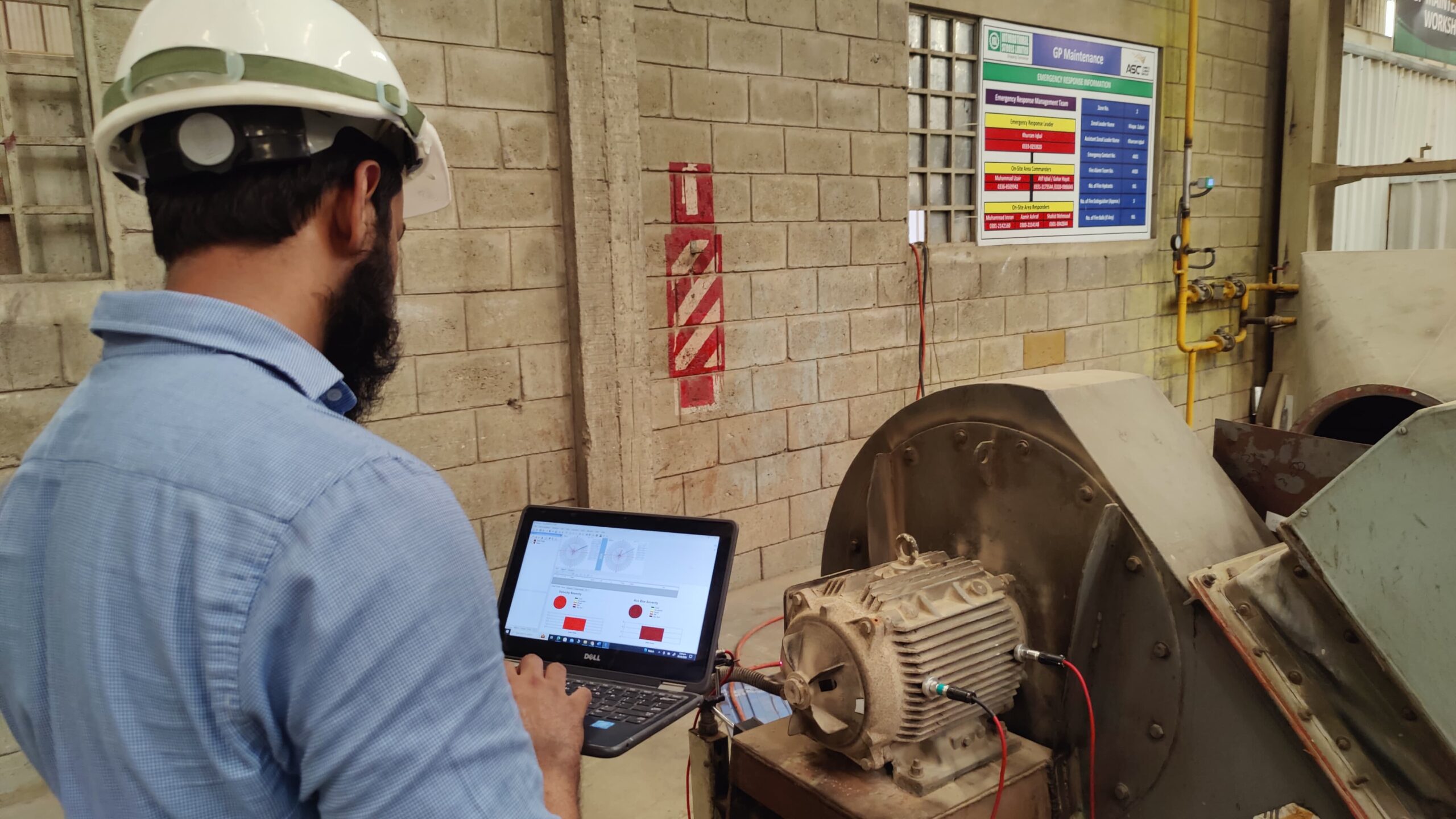

Have you ever noticed a machine vibrating more than usual? It might just be a harmless quirk, but it could also be a sign of trouble brewing beneath the surface. This is where vibration analysis comes in – a powerful tool for ensuring the health and longevity of your equipment.

What is Vibration Analysis?

In a nutshell, vibration analysis is the process of measuring the vibrations produced by machinery and analyzing them to identify potential problems. By understanding the patterns and frequencies of these vibrations, Vibration Analyst can diagnose issues like:

• Bearing wear
• Misalignment
• Gear problems
• Looseness
• Imbalance

Early detection of these problems allows for preventive maintenance, saving you from costly repairs and unplanned downtime.

The Vibration Analysis Process

Here’s a breakdown of the typical vibration analysis process:

1. Data Collection: Specialized sensors called accelerometers are attached to the machine at key measurement points. These sensors pick up on the vibrations and convert them into electrical signals.
2. Baseline Establishment: During the initial analysis, vibration data is collected and used as a benchmark, or baseline. This baseline serves as a reference point for future comparisons, helping to identify any deviations that might indicate developing problems.
3. Data Analysis: The collected data is then fed into specialized software that converts it from the time domain (a chronological record) into the frequency domain (a spectrum showing the intensity of different vibration frequencies). By analyzing this spectrum, Vibration Analyst can identify specific frequencies that correspond to various machine faults.
4. Diagnosis and Corrective Action: Based on the analysis, Vibration Analyst can diagnose the root cause of the vibration and recommend corrective actions. This might involve anything from lubrication adjustments to component replacement.

Benefits of Vibration Analysis

Here are some key benefits of incorporating vibration analysis into your maintenance strategy:

• Predictive Maintenance: By identifying problems early on, you can schedule repairs during downtime, preventing catastrophic failures and costly production losses.
• Reduced Downtime: Early detection of issues helps to prevent unexpected equipment breakdowns, keeping your operations running smoothly.
• Lower Maintenance Costs: Proactive maintenance is often cheaper than reactive repairs.
• Improved Equipment Lifespan: By addressing problems before they become severe, you can extend the life of your machinery.

Conclusion

Vibration analysis is a valuable tool for any organization that relies on machinery. By proactively monitoring equipment health, you can prevent costly downtime, extend equipment life, and optimize your maintenance strategy. If you’re looking to keep your machines running smoothly and efficiently, consider incorporating vibration analysis into your routine

Vibration analysis relies heavily on a tool called filters. Understanding how these filters work is crucial for interpreting vibration data accurately.

There are four main filter types, each designed to manipulate specific frequencies:

Low-Pass Filters:

Like gatekeepers, they allow only low frequencies to pass through, filtering out unwanted high frequencies. These are especially useful for removing distortions introduced during data acquisition and conversion.

Band-Pass Filters:

They act like spotlights, focusing only on a designated range of frequencies within a band while blocking out everything else. Imagine a radio tuner that isolates a specific station from background noise. Band-pass filters are ideal for extracting particular tones, like a test signal amidst surrounding noise.

Band-Stop Filters:

These work in reverse compared to band-pass filters. They function like noise cancellers, removing a specific range of unwanted frequencies while allowing everything else to pass. A common application is eliminating electrical line noise (50 or 60 Hz) from other vibration signals.

High-Pass Filters:

Think of them as focusing on whispers amidst a storm. They let through only high frequencies, blocking out the stronger, lower frequencies. This plays a key role in detecting early signs of bearing wear, which often manifest as subtle high-frequency vibrations.

While perfect filters would completely block unwanted frequencies, real filters aren’t that sharp. They have a fuzzy area where some frequencies weaken instead of being entirely stopped. Understanding these filter limitations is crucial to focusing on the data we actually care about.

A dial indicator is a valuable tool used for various applications, with one of the most common being shaft alignment.

Working Mechanism

The dial indicator operates using a precisely geared mechanism driven by a plunger to measure thousandths of an inch (thou). Here’s how it works:

• Plunger Movement: The plunger can move in and out.

When the plunger is pushed in, the needle rotates clockwise, indicating positive results

When the plunger moves out, the needle rotates counterclockwise, indicating negative results.

Mounting the Dial Indicator

To demonstrate the practical application, we mount the bracket to the shaft of the moveable machine with the dial reading on the rim of the stationary machine at the 12 o’clock position. Ensure the plunger is midway between fully extended and fully retracted, then zero the dial by rotating the bezel.

Aligned Machine

Consider only the vertical plane for this explanation, although the same principles apply to the horizontal plane. When the shafts are perfectly aligned:

• As the shafts rotate, the dial indicator remains at zero throughout the full revolution.

Misaligned Machine

To illustrate misalignment, we lower all four feet of the moveable machine by 20 thou, creating a vertical offset misalignment of -20 thou with zero horizontal offset. Viewing the alignment axially, the misalignment is evident, with the center points of the shafts 20 thou apart. The dial is set to zero at the 12 o’clock position.

1.Rotate to 6 o’clock: As the shaft rotates to the 6 o’clock position, the needle moves in the negative direction as the dial plunger extends.

2.Reading at 6 o’clock: At 6 o’clock, the dial reads -40 thou, known as the Total Indicator Reading (TIR). Divide this number by two and rotate the bezel to -20 thou, the actual amount of misalignment.

3.True Shaft Position: The dial indicator now shows the true position of the shafts at any point during the rotation.

4.Back to 12 o’clock: Rotating back to the 12 o’clock position, the dial indicates zero offset at 3 o’clock and +20 thou at 12 o’clock, confirming the correct values.

By following these steps, the dial indicator accurately measures and aligns the shafts, ensuring optimal performance of the machinery.

Vibration sensors play a crucial role in predictive maintenance, machine health monitoring, and various research applications. But even the best sensor can provide inaccurate data if it’s not mounted correctly. The mounting method you choose significantly impacts the quality and frequency range of the vibrations captured. So, how do you pick the right technique?

This blog dives into the four main methods for mounting vibration sensors:

1. Stud Mounting:

The gold standard for permanent installations, stud mounting offers the most secure and reliable attachment. It involves drilling a threaded hole into the machinery, allowing for the widest dynamic measurement range and optimal high-frequency response. This method is ideal for harsh environments and applications requiring high-frequency data (>10 kHz). However, drilling into machinery might not always be feasible.

2. Adhesive Mounting:

A popular alternative to stud mounting, adhesives provide a strong and relatively easy-to-implement solution. However, adhesive selection is crucial. Choose an adhesive specifically formulated for vibration sensors, considering factors like temperature resistance and curing time. While effective, removing a sensor mounted with adhesive can be tricky and potentially damage the sensor itself. For this reason, adhesives are often preferred for semi-permanent installations.

3. Magnetic Mounting:

A quick and convenient option, magnetic mounting is great for temporary measurements or when drilling isn’t possible. However, magnets can introduce electrical noise into the data and may not be suitable for high-precision applications. Additionally, the strength of the magnet needs to be sufficient to hold the sensor securely under vibration.

4. Probe Tips:

Probe tips, also known as stingers, are essentially threaded studs with a pointed end. They are ideal for tight spaces or reaching specific measurement points on a machine. Similar to stud mounting, probe tips provide a good high-frequency response, but require a threaded hole for attachment.

Choosing the Right Method:

The best mounting method depends on several factors, including:

• Permanence: Do you need a long-term solution or something temporary?
• Frequency Range: What range of vibration frequencies are you interested in measuring?
• Environment: Is the environment harsh or prone to extreme temperatures?
• Machine Surface: Can you drill into the machine, or are there space limitations?

Remember:

• Always consult the sensor’s datasheet for recommended mounting techniques.
• Ensure a clean and smooth mounting surface for optimal data transmission.
• Use high-quality mounting hardware and adhesives suited for the application.

By carefully considering these factors and mounting methods, you can ensure your vibration sensors provide accurate and reliable data, keeping your machines running smoothly.

Steps to Laser Shaft Alignment:

1. Preparation is Key:

• Lockout/Tagout: Ensure all machinery is secured and de-energized before starting.
• Machine Cleanliness: Remove dirt, debris, and any coupling guards that might obstruct the laser path.
• Thermal Stability: Allow the machinery to reach operating temperature for accurate measurements.

2. Mounting the System:

• Attach the laser transmitter and receiver brackets to the shafts using the provided adapters.
• Ensure the laser beam is centered on the receiver detector at the starting position.
• Use the dial indicator (optional) for a preliminary alignment check.

3. Taking Measurements:

• Follow the instructions on your specific laser system to initiate the measurement process.
• Slowly rotate the shaft (usually a full rotation or as specified by the system).
• The display unit will show you the misalignment values in both the horizontal and vertical planes.

4. Making Adjustments:

• The display unit will typically guide you on how much and in which direction to move the machine feet to achieve proper alignment.
• Use shims of appropriate thickness to adjust the machine’s position.

5. Verification and Repeat:

• Once adjustments are made, re-run the measurement process to verify if the shafts are within the acceptable alignment tolerance (refer to manufacturer’s specifications).
• If needed, repeat steps 4 and 5 for fine-tuning.

Pro Tips:

• Soft Foot Check: Before laser alignment, ensure all machine feet are firmly seated to avoid skewed readings.
• Follow the Manual: Each laser system has specific functionalities and data interpretation methods. Refer to the manufacturer’s manual for detailed instructions.
• Seek Training: For complex alignments or if you’re new to the process, consider getting proper training to ensure accurate and safe execution.

By following these steps and best practices, you can master the art of laser shaft alignment and keep your machinery operating at peak performance. Remember, proper alignment translates to increased efficiency, reduced maintenance costs, and a safer work environment.

The world relies on precise machinery, from the engines that power our cars to the delicate instruments used in medical procedures. But how do we ensure these machines are perfectly aligned for optimal performance? Enter laser alignment, a powerful tool that uses the accuracy of lasers to achieve just that.

What is Laser Alignment?

Laser alignment is a technique that utilizes a laser beam to establish precise straightness, parallelism, or angularity between machine components. By directing a laser beam along a machine’s shaft or other critical elements, any misalignments become evident as the beam deviates from its intended path.

Why is Laser Alignment Important?

Improper machine alignment can lead to a cascade of problems:

• Increased wear and tear: Misaligned components grind against each other, causing premature wear and tear, leading to costly repairs and replacements.
• Reduced efficiency: Misalignment can cause friction and drag, reducing a machine’s overall efficiency and increasing energy consumption.
• Poor product quality: Inaccurate alignment can lead to vibrations and inconsistencies in the manufacturing process, resulting in products that don’t meet specifications.

Benefits of Laser Alignment:

Laser alignment offers numerous advantages over traditional alignment methods:

• High precision: Lasers provide an incredibly accurate reference point, allowing for precise alignment adjustments.
• Ease of use: Modern laser alignment tools are user-friendly and often come with intuitive interfaces.
• Time-saving: Laser alignment can significantly reduce the time needed to align machinery compared to traditional methods.
• Improved safety: By minimizing the need for manual adjustments near moving parts, laser alignment enhances safety in the workplace.

Getting Started with Laser Alignment:

The specific steps involved in laser alignment will vary depending on the machinery and the type of laser alignment tool being used. However, here’s a general overview:

1. Preparation: Secure the laser emitter and detector onto the designated mounting points on the machine.
2. Alignment Procedure: Follow the manufacturer’s instructions to project the laser beam onto the corresponding target on the machine.
3. Adjustment: Based on the laser beam’s position on the target, make adjustments to the machine’s components until the beam hits the center of the target.
4. Verification: Once adjustments are made, repeat the procedure to verify that the alignment is within the specified tolerance.

Laser Alignment Tools:

There are various types of laser alignment tools available, each catering to specific needs:

• Shaft Alignment Systems: These systems are used to align rotating shafts, a common application in machine tools and industrial equipment.
• Line Lasers: Line lasers project a straight line, ideal for aligning components that require a straight path, such as guide rails or conveyor belts.
• Dot Lasers: Dot lasers project a single red or green dot, useful for aligning components that require precise positioning, like pulleys or bearings.

Conclusion:

Laser alignment is a valuable tool for anyone who wants to ensure the optimal performance and longevity of their machinery. By understanding the basics and employing the appropriate tools, you can reap the numerous benefits of laser alignment and keep your machines running smoothly.

Additional Tips:

• Always refer to the user manual for your specific laser alignment tool.
• Invest in proper safety gear, such as safety glasses, when working with lasers.
• If you’re dealing with complex machinery, consider seeking professional assistance for laser alignment tasks.

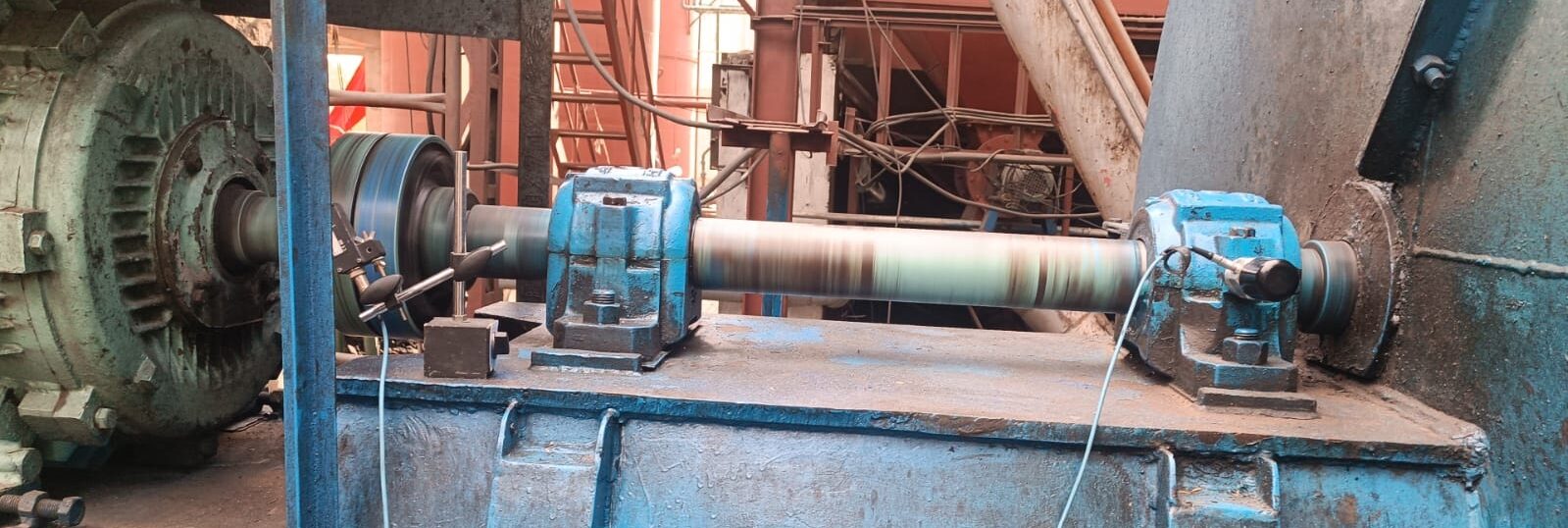

By incorporating laser alignment into your maintenance routine, you can contribute to a more efficient, cost-effective, and safer work environment.
