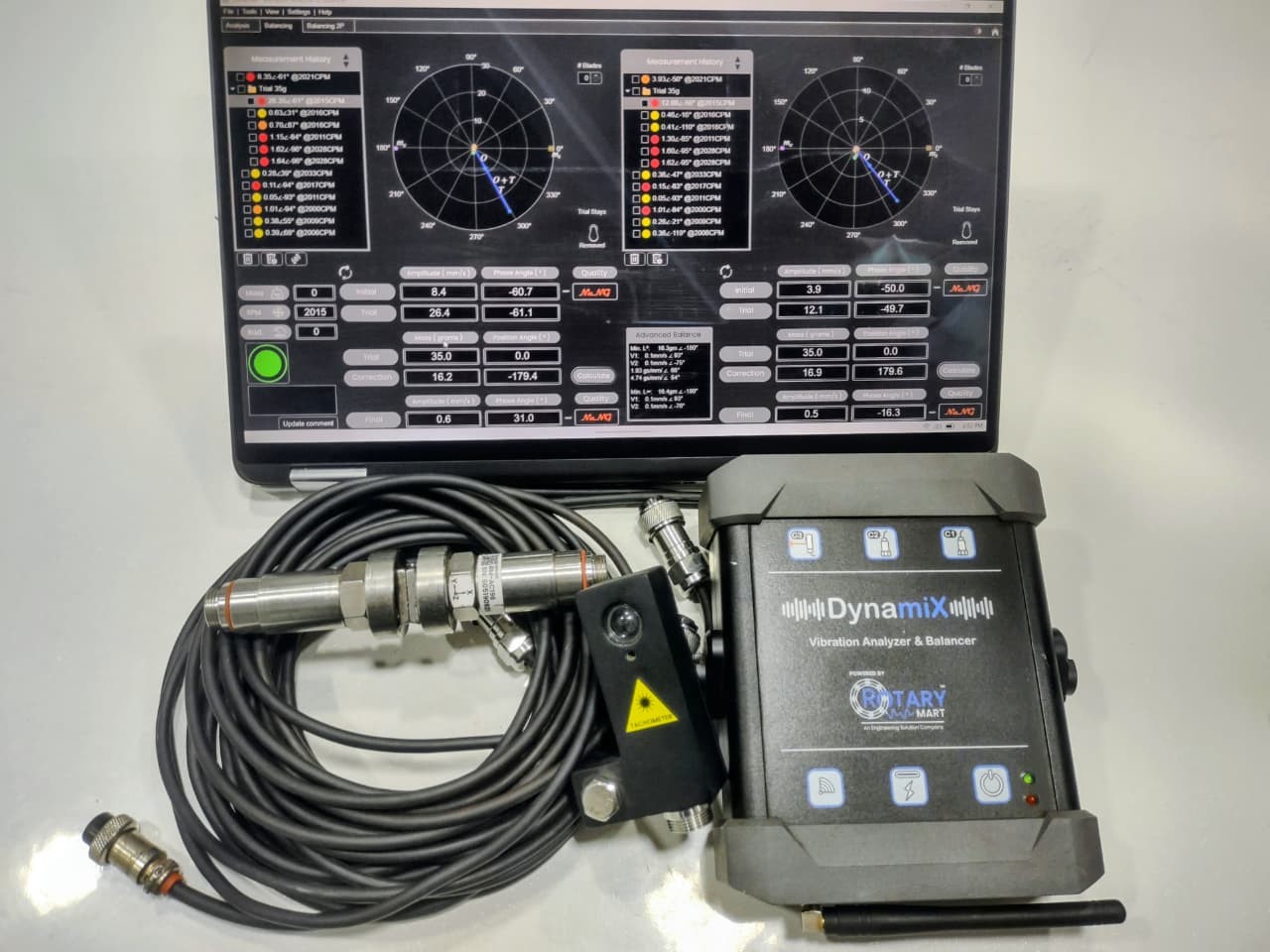

Dynamix – Vibration Analyzer & Dynamic Balancer

Features:

Data collection

• Off-Route data collection
• Route data collection
• Vibration Trending

Analysis:

• Spectrum analysis.
• Phase analysis.
• Envelope analysis.

Report

Support automatic report generation containing Time-waveforms, FFT spectra, Trend plot.

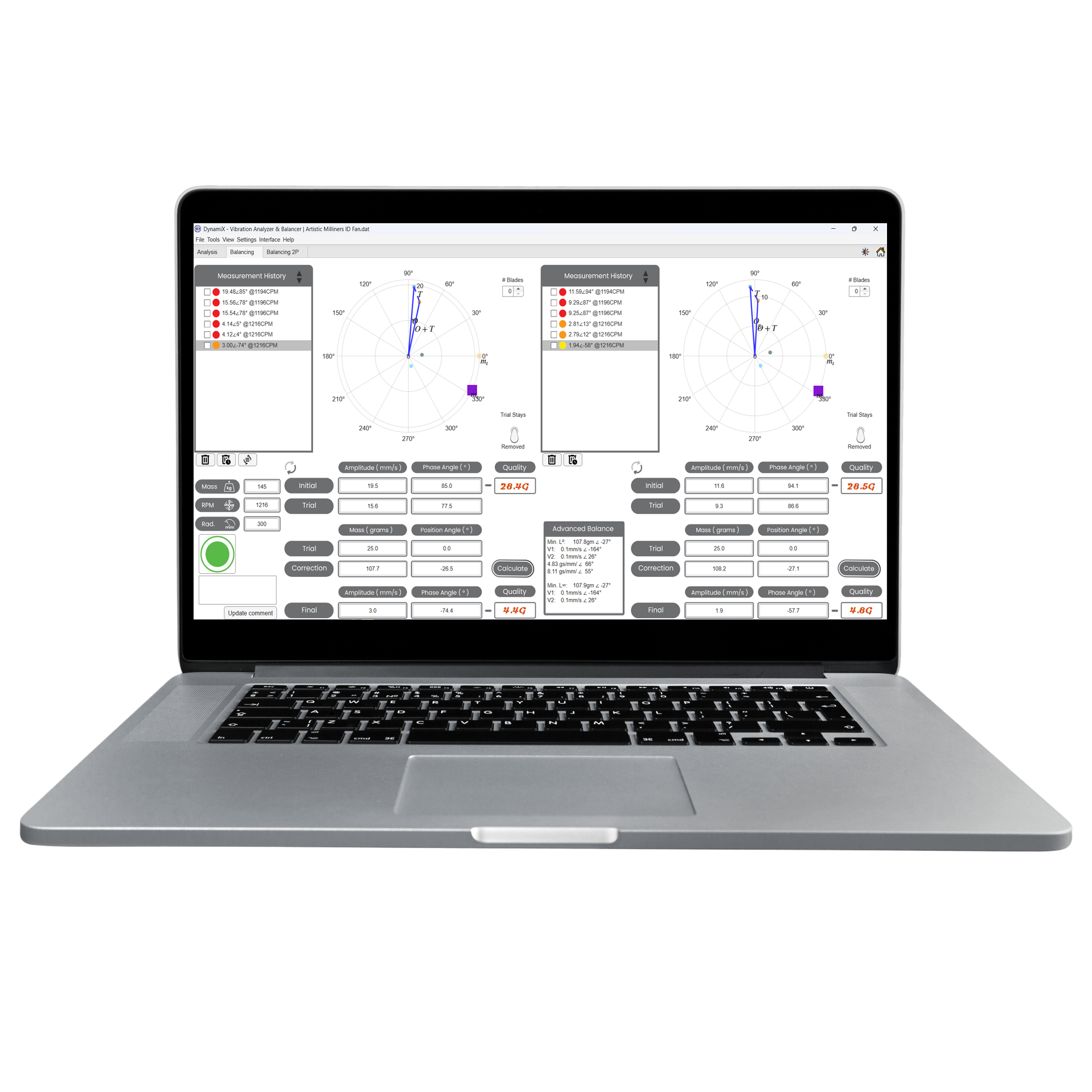

Balancing:
On-site dynamic balancing, method of influence coefficient (single and dual plane).

Sensor specification:

1. Accelerometer:
   – Technology: Triaxial Digital MEMS
   – Samplerate: 26.667 kHz
   – Mechanical Bandwidth(±3dB): 6kHz
   – Max range: ± 16g
   – Resolution: 16-bit
   – Noise density: 60 μg/√Hz

2. Tachometer
   – Supported sensor: Laser/IR based Obstacle sensors
   – Output logic level: 3.3Volts
   – Power supply voltage 3 – 5 Volts

Channel configuration
– Number of accelerometer channels: 02
– Number of tachometer channels : 01
– Total number of channels: 03
Wireless Data Transmission
– Wi-Fi 2.4GHz (IEEE 802.11n)
